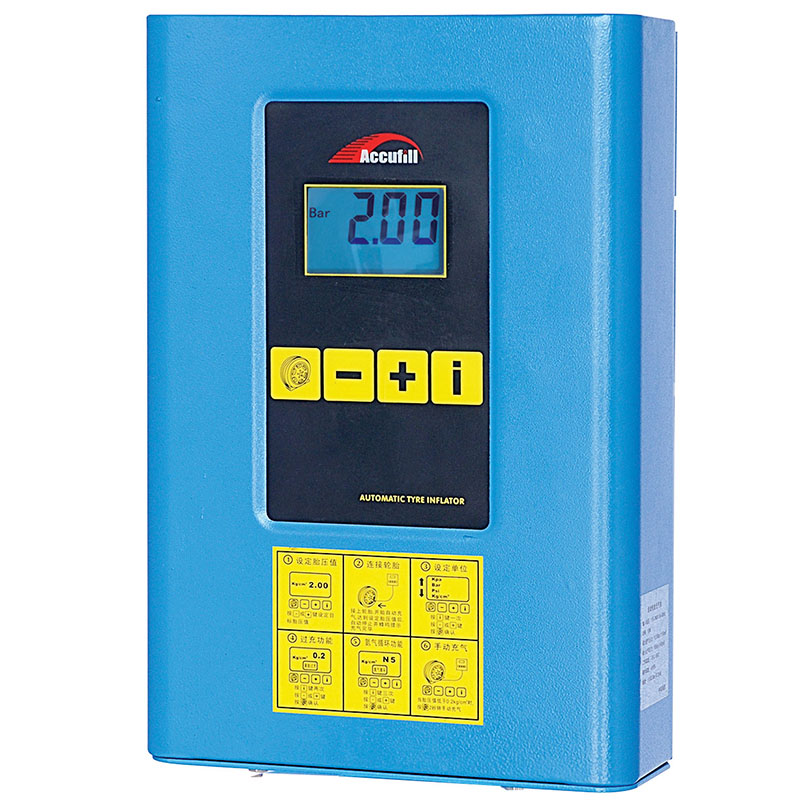

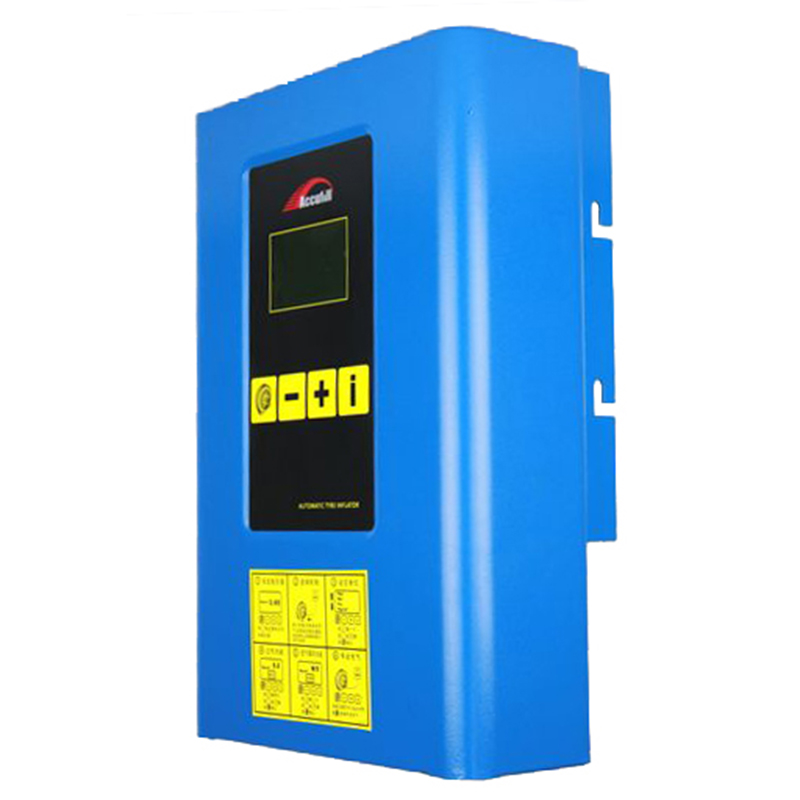

W50-IP56 Rating Wall Mounted Tire Inflator
Product Description
●Metal spray shell, delicate and durable.
●Automatically detect tire pressure and automatically activate inflation function.
●Nitrogen cycle function (N2),the number of cycles can be adjusted according to customer requirements.
●Over Pressure Setting(OPS) function(OPS). Function that allows the tyre to be inflated to a certain pressure then deflates automatically to a normal operating pressure, used for seating tyres on rims.
●LCD display, blue LED backlight is clear and easy to read.
●Using ceramic sensor, product detection is accurate and durable.
●With self-calibration and Error reporting function, it is convenient for users to use and adjust.
●A variety of Psi/Bar/Kpa,kg/cm² units are available, making it convenient for customers from various nations.
Product Features
C eramic sensor High accuracy, long service life
High-definition digital display, large easy to read LCD display with backlight
Standard inflate/ deflate (auto); Connect the tyre to start inflating and deflating automatically and stop automatically when the pressure is reached
Comprehensive diagnostic and error reporting with audible warning
Unit selection: PSI, BAR, KPA, kg/cm2 four units can be selected convenient for customers in different countries to use
Voltage input: ACI1OV -240V/50-60Hz, easy to use for customers in different countries
Adjustable over pressure setting( OPS )
Powder coated metal housing, tough and durable.
Application
| Reader Units: | Digital Display |
| Chuck Type: | Clip On |
| Chuck Style: | Single Straight |
| Scale: | 0.5-10bar, 7-145psi, 50-1000kpa ,0.5-10kg/cm² |
| Inlet Size: | 1/4"Female |
| Hose Length: | 7.6m PVC&Rubber Hose |
| Dimensions LxWxH: | 410x280x220 mm |
| Weight: | 4.75KgS |
| Accuracy: | ±0.02bar ±0.3psi ±2kPa ±0.02kg/cm² |
| Operation: | Nitrogen Cycle, Automatic Inflation, Automatic Deflation, Over Pressure Setting(OPS) |
| Supply Pessure Max: | 10.5bar ,152psi ,1050kPa ,10.5kg/cm² |
| Advised Application: | Industrial, Workshops, Car Repair Shop, Tire Repair Shops, Car Wash Shops, Etc. |
| Operation Temperature: | -10℃~50℃ (14℉~122℉) |
| Supply voltage: | AC110-240V/50-60Hz |
| Warranty: | 1 Year |
| Inflation Volume: | 3000L/min@145psi |
| Additional features: | Mobile phone APP and remote control can be added |
| Package Size: | 41*28*22 cm |
| Number Of Packages (Pieces): | 1 |
A product designed to take the hassle out of inflating tires. This tire inflator features a sleek, metal-painted casing that's as sophisticated as it is durable. Has the function of automatically detecting tire pressure and inflating. This means you don't have to manually check tire pressure and inflate them. Not only that, but it also has a nitrogen circulation function, which can be adjusted according to customer requirements.
